Precision Metal
Rollers and Shafts

Precision machined metal rollers is another area of our expertise, whether in aluminium, mild or stainless steel.

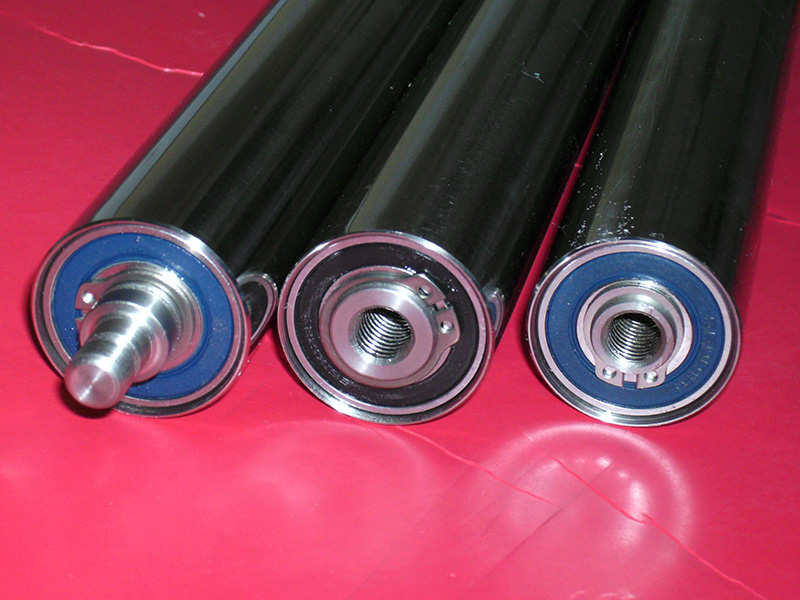

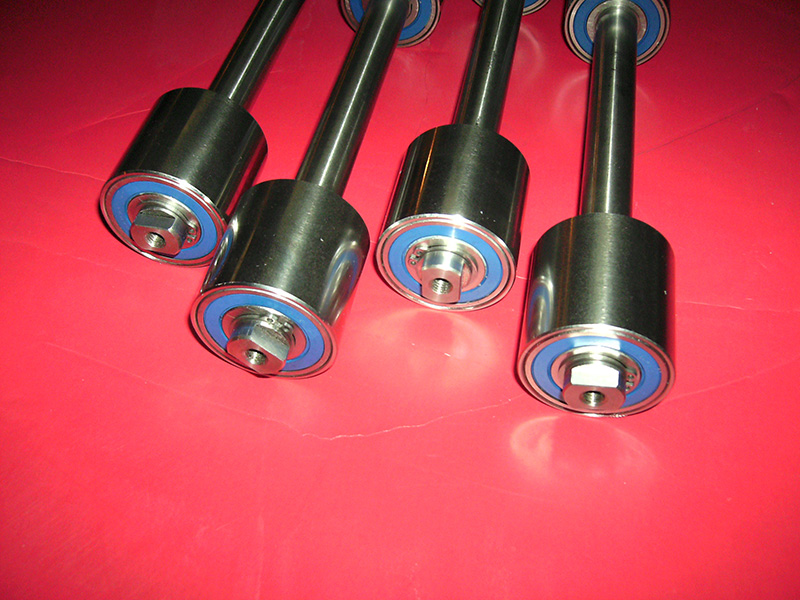

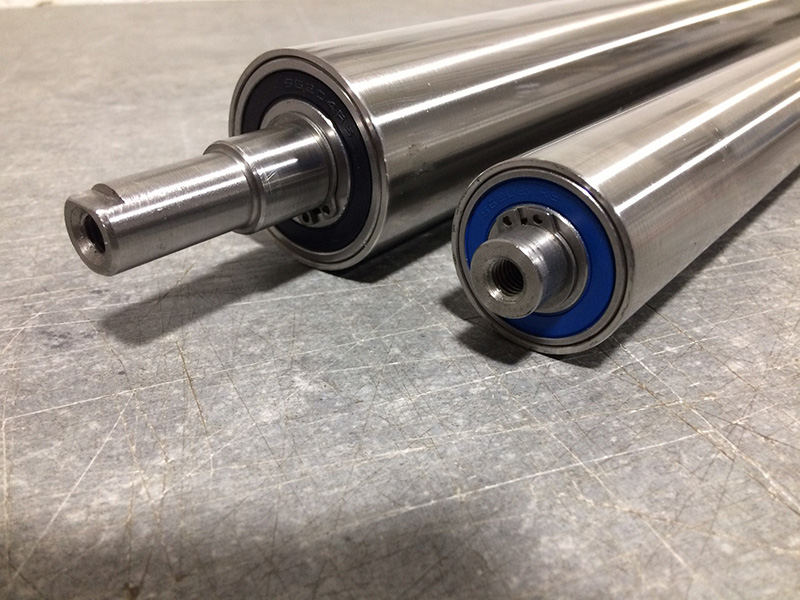

Smaller diameter rollers can be produced with precision bearings machined directly into the tube to match the shaft requirement; or with fixed shafts retained by welded end plates if needed.

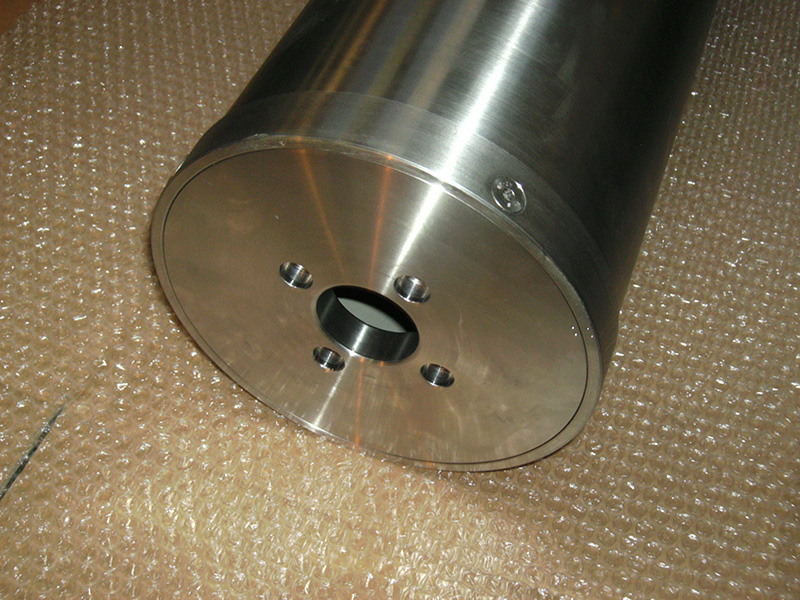

Larger diameter rollers are manufactured with machine recessed endplates to accommodate precision bearings or fixed shafts and can be machined in a wide range of profiles to suit the intended application.

For conveyor applications, our precision metal rollers are ideal for drive, tail, snub, idle, tension and return roller applications and are predominantly fitted with stainless steel shafts. As with everything Conveyor Accessories do they are produced to your specific requirements including:

Roller Profile Options

  • Parallel, crowned or tapered face
  • Tracking or drive band grooves
  • Turn downs

Shaft Options

  • Fixed
  • Internal bearings
  • Keyways

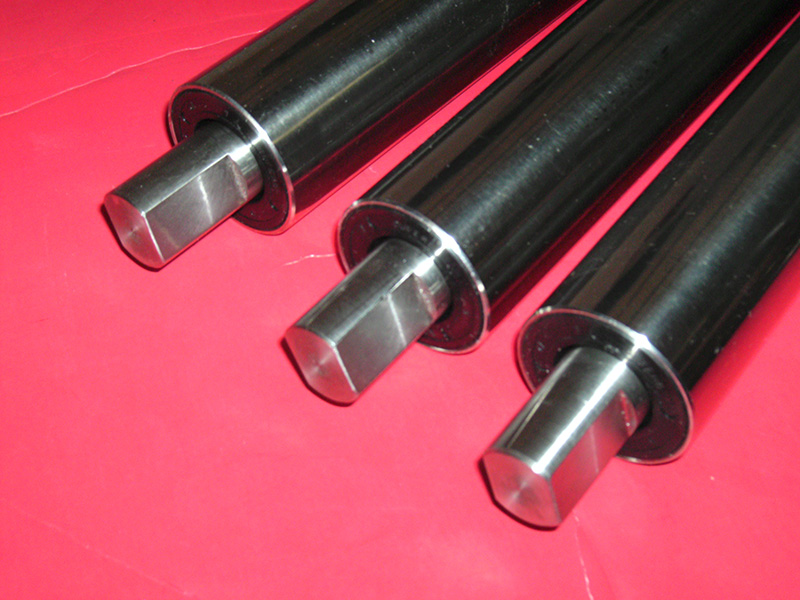

  • End flats or squared ends
  • Through or tapped in line holes
  • Drilled and tapped or males threaded ends
  • Turn downs
  • Frame grooves

Bearings

Bearings of all types can be supplied and fitted as required.

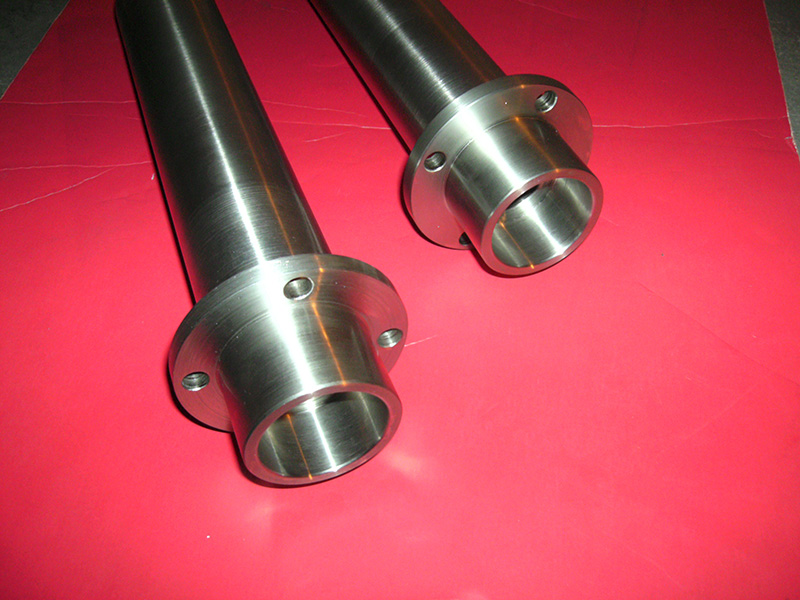

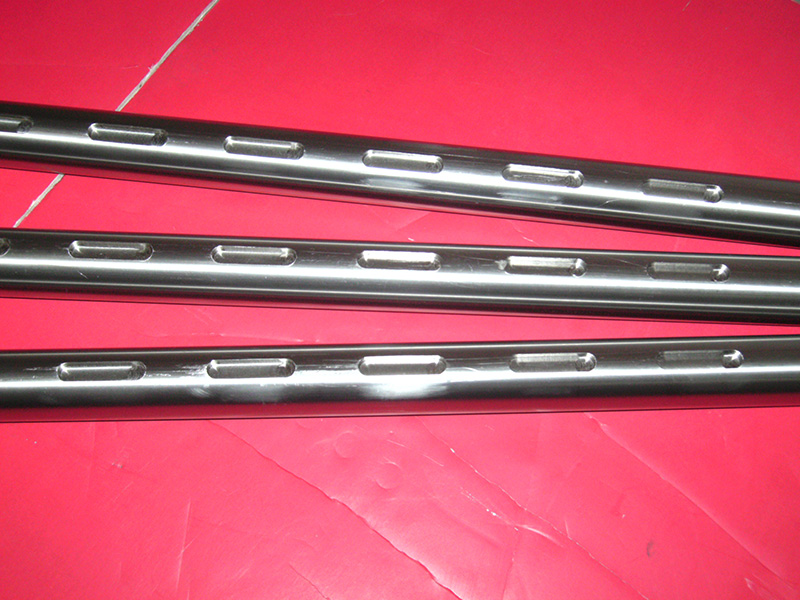

CAS also manufacture precision metal drive and tail shafts with all types of machining detail in both mild and stainless steel for any conveyor application.

We can produce bespoke precision metal rollers and shafts from full technical drawings, sketches or dimensional and application information via telephone or email.

Should you be unsure of exactly what you require, we will guide you through the key detail and application, such that we can agree and supply the most efficient, reliable and cost effective solution for your specific needs.

Main Features

  • Made in aluminium, mild or stainless steel
  • Smaller or larger diameter rollers available
  • Can be machined in a wide range of profiles to suit your needs

We deliver all over the UK, so you can rest assured we can make and deliver what you need, and you’ll get your item quickly. If you are not sure on exactly what you need, or if we can make it, then please get in touch. We have highly experienced staff who will be able to offer you advice.

You can contact us on 01604 592960 or email us at sales@casrollers.com and we’ll be happy to answer any questions you might have. We look forward to hearing from you!
